Pyrosleeve - PGH.20/ROS/VC
Premium Retro-Fit Firesleeves for Extreme Heat Protection

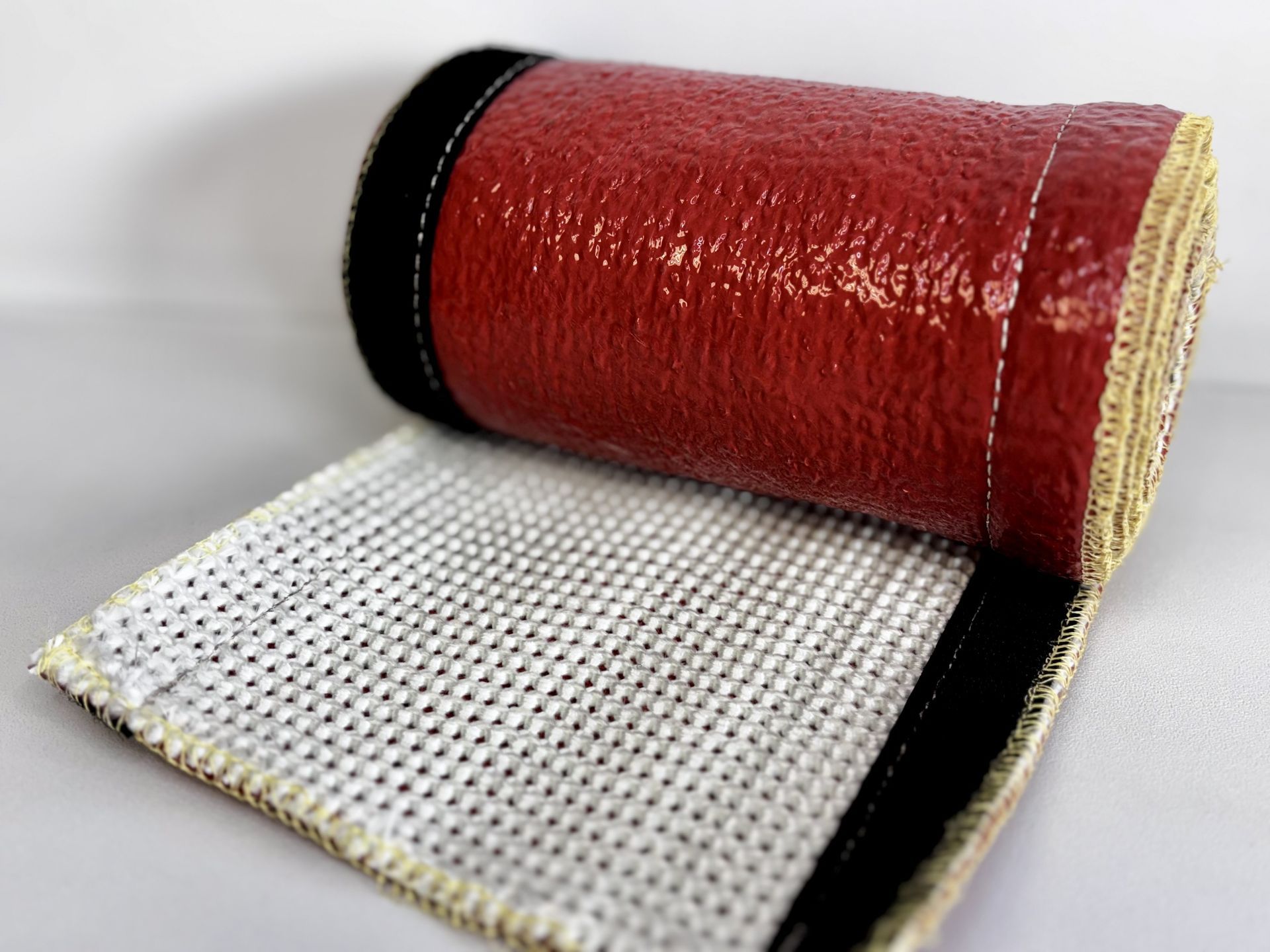

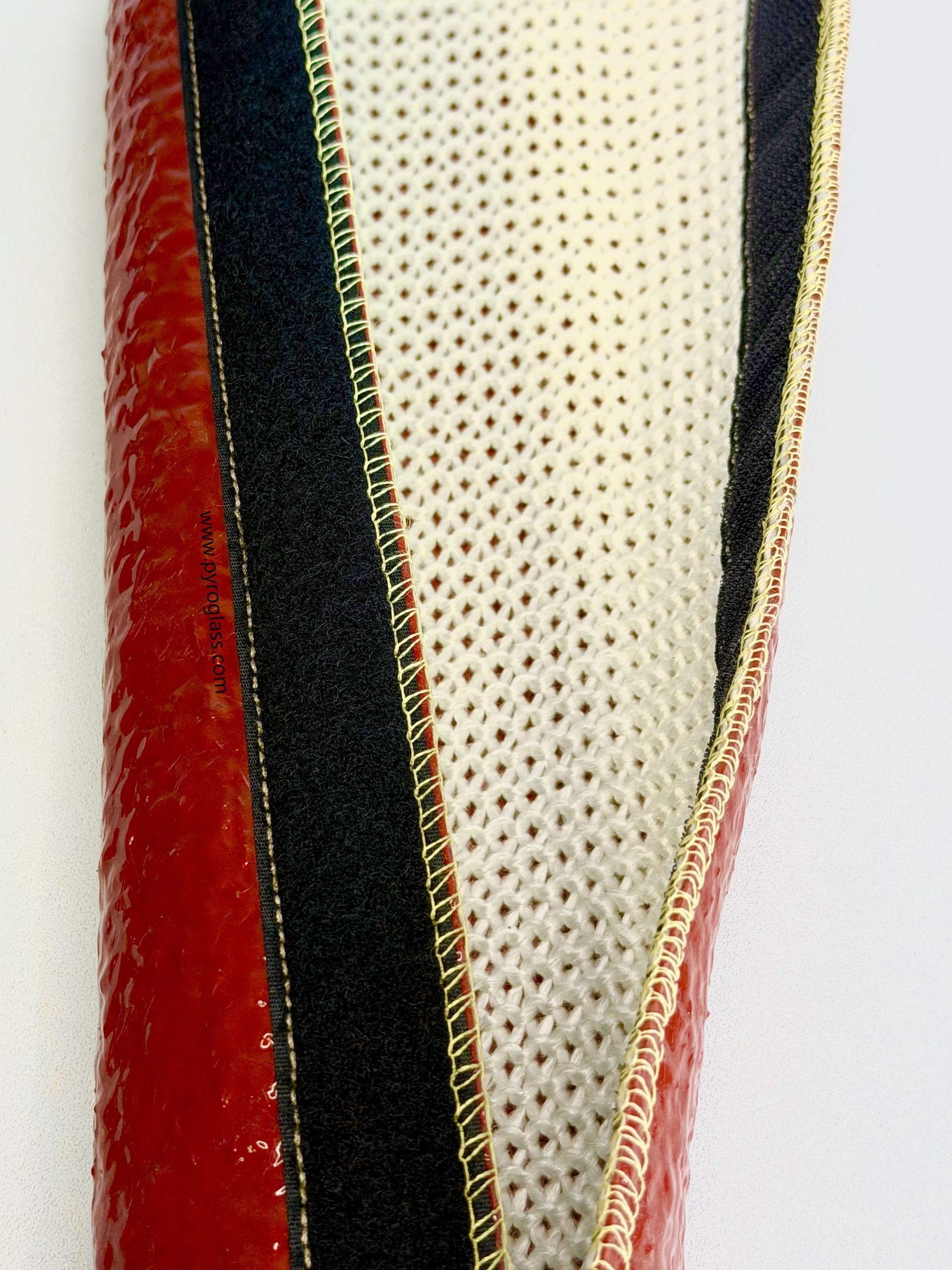

PGH.20/ROS/VC : Red Oxide Silicone Coated Glass Fibre Sleeving finished with a flame retardant hook & loop closure.
Our high-temperature firesleeve hook and loop closures are manufactured entirely in-house, from the base materials through to the finished product. This complete control over the manufacturing process allows us to maintain exceptional quality standards while offering flexible, bespoke solutions tailored to specific application requirements.
For retro-fitting firesleeve where disconnecting hoses isn't practical.
Characteristics
PGH.20/ROS/VC Pyrosleeves hook & loop closures are very flexible and easy to fit. The hook & loop fastening makes these products an ideal solution for protecting hose assemblies and pipework which have already been installed and disconnecting hoses is not possible.
- Continuous protection at an operating temperature of 260ºC
- Ability to withstand a molten metal splash at 1200ºC
- Excellent fire resistance - hook & loop is 100% fire retardant polyamide
- Peel strength: 1.8 N/cm as defined by EN 12 242
- Shear strength: 12 N/cm squared as defined by EN 13 780
- Provides personnel protection against burns from hot hoses, steam lines, etc.
- Helps to reduce energy loss by retaining heat within pipework
- When exposed to flame the high grade rubber will form a protective SiO2 layer
- Highly resistant to most oils, hydraulic fluids, fuels, acids, and alkalis
- Good abrasion resistance
- High flexibility
Need a non-standard diameter, pre-cut assembly or retrofit solution? See our Custom Firesleeve Solutions
Availability
Our firesleeve hook & loop closures are made to order in our Lancashire factory.
Manufacture Lead-Time: 3 - 5 working days (depending on order quantity)
Manufactured internal bore sizes: 15mm - 115mm
Standard Coil length: Up to 15M
(supplied in custom lengths to suit customer requirements)
Standard Colour: Red / other colours on request
Nominal thickness: 3-4 mm
Fully REACH & RoHS Compliant
Conflict Minerals & PFAS free
Typically used in the following industries:
- Mining
- Rolling stock / underground railways
- Automotive - Heavy Goods Vehicles
- Marine - yachts / ships
- Steam rooms / boiler houses
- Wind turbine power generation
| Feature | Standard Firesleeve | Hook & Loop Firesleeve |
|---|---|---|
| Installation | Before hose assembly | After installation |
| Hose removal required | Yes | No |
| Retrofit applications | No | Yes |
| New equipment | Excellent | Good |
| Maintenance work | Limited | Excellent |
| Downtime | Higher | Minimal |
| Typical users | OEM's | Maintenance engineers |
| Best for | New Builds | Existing equipment |
Pyrosleeve Ltd operates a policy of continuous technical improvement. We reserve the right, therefore, to modify products without prior notification.
The information provided above does not form a specification. Because Pyrosleeve Ltd cannot be aware of all customer applications, no warranty confirming the fitness or suitability of the product for any particular application can be given. Any proposed use of a Pyrosleeve product should be tested and the performance independently verified.
